| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-010 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

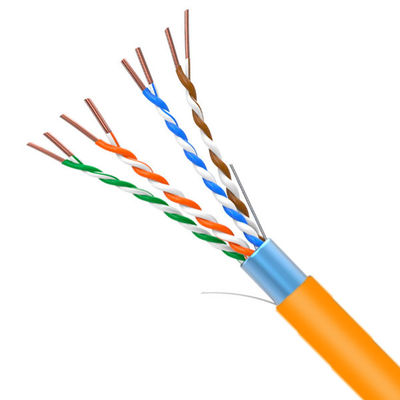

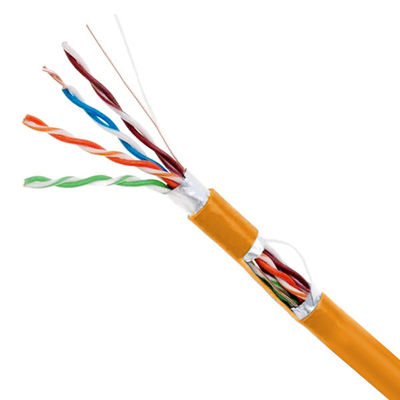

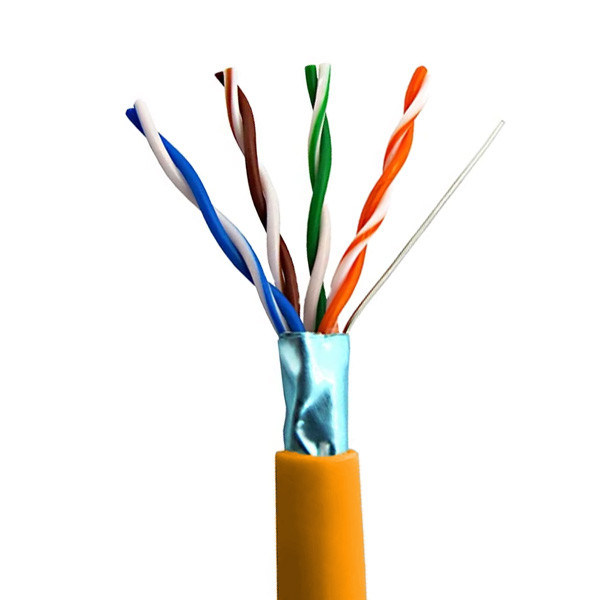

| Cable Type | FTP CAT5E Data Cable |
| Jacket Material | LSZH |
| Conductor Material | Copper |
| Color | Orange |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Frequency | 100MHz |
| Length | 1000ft |
| Conductor Size | 24 AWG |
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω/100m |
| OD | 24 AWG | Resistance unbalance within a pair ≤ 2% |
| Insulation | HDPE 8303 | Insulation Resistance >1500 MΩ/100m |
| Pair Twist | Precise lay lengths for each pair (15.5-22.0mm) | Mutual capacitance ≤ 5600 pF/100m |
| Outside Shield | Polyester/Aluminium (PET/ALU) with ≥115% coverage | Characteristic impedance 100±15 Ω at 100MHz |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 4.05 | 56.27 | 23.01 |
| 10 | 6.47 | 50.30 | 25.00 |
| 16 | 8.25 | 47.24 | 25.00 |
| 25 | 10.42 | 44.33 | 24.32 |
| 100 | 21.98 | 35.30 | 20.11 |
