| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |

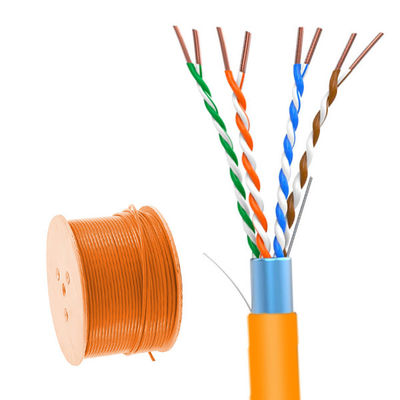

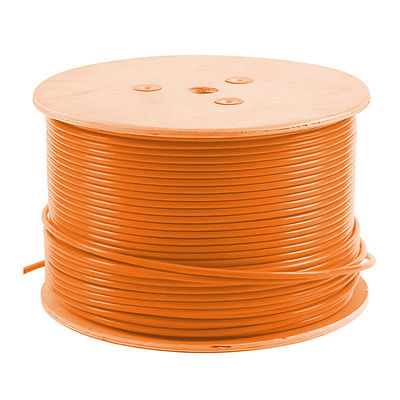

Our FTP CAT5E Shielded Cable is UL, ETL, and RoHS certified, ensuring quality and compliance with industry standards. The 24 AWG conductor minimizes signal attenuation for stable connections, while the durable PVC jacket provides protection for both indoor and outdoor use.
| Parameter | Value |
|---|---|
| Frequency | 100MHz |
| Color | Orange |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Conductor Size | 24 AWG |
| Length | 1000ft |
| Conductor Material | Copper |
| Cable Type | FTP |
| Jacket Material | PVC |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | PVC, 60P, -20~75℃ |
| Jacket Hardness | 81 ± 3 |
| Property | Value |
|---|---|
| Resistance unbalance within a pair | ≤ 2% |
| Dielectric Strength Test Voltage | 1.00KV DC or 0.7 KV AC for 1 min |
| Mutual capacitance | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 1 | 4.05 | 23.01 | 56.27 |
| 10 | 6.47 | 25 | 50.3 |
| 100 | 21.98 | 20.11 | 35.3 |
