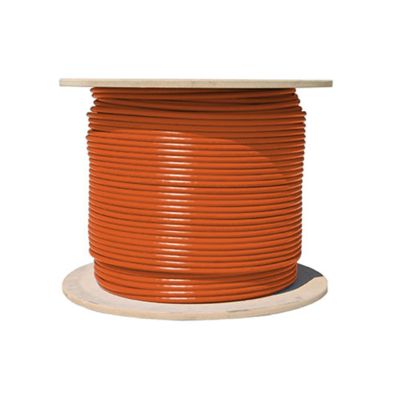

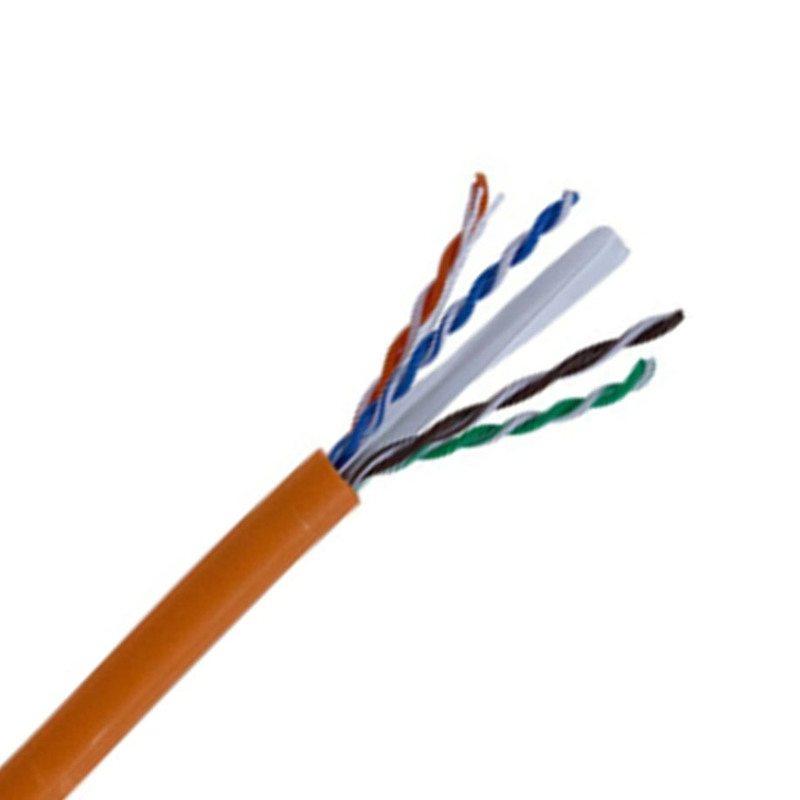

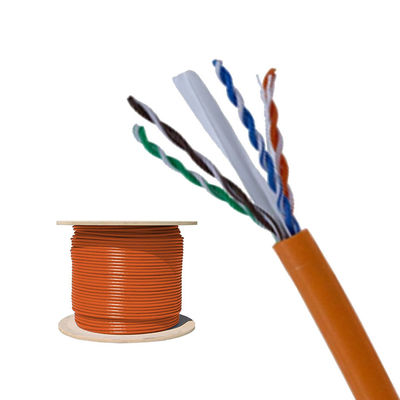

CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool

Name: CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6U-025
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CT6U-025
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Transmission Speed:

1Gbps

Jacket Material:

LSZH

Color:

Orange

Length:

500Ft

Compatibility:

Ethernet

Bandwidth:

250MHz

Conductor Size:

23AWG

Shielding:

Unshielded

Cable Length:

500FT

Packaging Details:

Inner box size: 32X32X18.5CM Outer box size (for packing): 39x33.5x34cm

Highlight:

CAT6 UTP cable LSZH orange

bulk CAT6 cable 500ft spool

high performance CAT6 cable 23AWG

Product Description

CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool

The INTEGRITY ITI-CT6U-025 CAT6 UTP LSZH Orange Cable delivers high-performance networking with reliability and safety for large-scale installations. Designed for professional contractors, wholesalers, and IT integrators, this 500ft bulk cable offers flexibility, compliance, and efficiency.

Key Features

High-Speed Data Transmission - Supports up to 1Gbps Ethernet and 250MHz bandwidth, making it ideal for business offices, data centers, and residential networks.
Durable LSZH Jacket - The orange LSZH (Low Smoke Zero Halogen) jacket ensures minimal smoke and toxic emissions during fire, suitable for schools, hospitals, and public facilities.
23AWG Oxygen-Free Copper - Pure copper conductors reduce signal loss and provide stable connectivity across long distances.
UTP Unshielded Design - Balances interference resistance and installation flexibility, ideal for structured cabling projects.
Bulk 500ft Spool - Packaged for wholesale and large deployments, simplifying inventory management and reducing project costs.
Versatile Applications - Compatible with Ethernet switches, routers, patch panels, and servers for enterprise and home networks.
Global Compliance - Certified to UL, ETL, CPR, CE, and RoHS standards for safe and reliable international use.
Installer-Friendly - Easy routing through walls, ceilings, and cable trays, reducing installation time and labor costs.
Wholesale Efficiency - Factory-direct supply ensures consistent quality, competitive pricing, and fast lead times.
Trusted Brand - Backed by INTEGRITY's expertise and CNAS-certified testing for performance assurance.

Specifications

Construction Item Description	Electrical Property
Conductor Material: Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m
OD: 23 AWG	Resistance unbalance within a pair: ≤ 2%
Insulation Material: HDPE	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m
OD: 1.15 ±0.01 mm	Mutual capacitance: 5600 pF / 100m MAX
Average THK: 0.25 mm	Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m

Transmission Properties

Frequency (MHz)	Attenuation (Max) (dB/100m)	Propagation Delay (MAX) (ns/100m)	Return Loss (Min) (dB)	NEXT (Min) (dB)
1	3.78	552	45	66.27
8	5.32	546.73	45	61.75
10	5.95	545.38	45	60.3
16	7.55	543	45	57.24
20	8.47	542.05	45	55.78

Applications

Enterprise Networks - Deploy CAT6 UTP LSZH cable in corporate offices for seamless LAN, VoIP, and cloud connectivity.
Data Centers - Supports high-density cabling with stable 1Gbps performance and 250MHz bandwidth.
Industrial Installations - Reliable for factories, warehouses, and automation systems requiring durable LSZH cables.
Public Buildings - LSZH safety jacket makes it ideal for hospitals, schools, airports, and government facilities.
Home and Commercial Use - Perfect for streaming, gaming, and smart home IoT devices with fast Ethernet connectivity.
