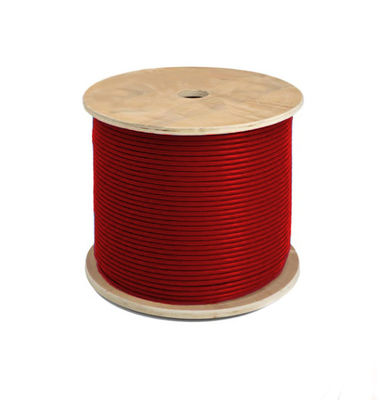

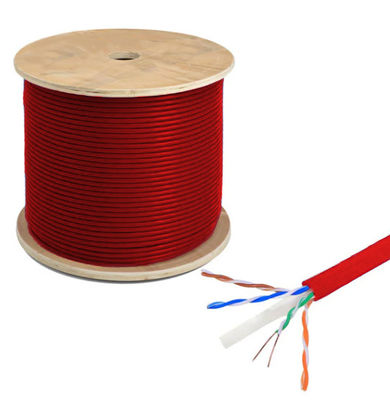

UL Solid Copper LSZH CAT6 UTP Cable Resistant Moisture 1000Mbps 250 MHz

Name: UL Solid Copper LSZH CAT6 UTP Cable Resistant Moisture 1000Mbps 250 MHz
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6U-024
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT6U-024
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Certifications:

ETL, CSA,UL, UL, TUV, CPR, CE, RCM, RoHS

Category:

CAT6

Jacket Color:

Red

Jacket Material:

PVC

Conductor Amaterial:

Bare Copper

Cable Type:

Unshielded Twisted Pair

Frequency:

250 MHz

Packaging Details:

Wooden shaft packaging：38x26x22cm

Highlight:

resistant moisture CAT6 UTP Cable

Solid Copper CAT6 UTP Cable

LSZH CAT6 UTP Cable 250 MHz

Product Description

UL Solid Copper LSZH CAT6 UTP Cable Resistant Moisture 1000Mbps 250 MHz

CAT6 UTP Solid Copper LSZH Cable 1000Mbps Stable Transmission

The INTEGRITY ITI-CT6U-024 CAT6 UTP cable is engineered for high-speed indoor networking and LAN installations. Designed with solid oxygen-free copper conductors, it delivers 250MHz bandwidth and 1000Mbps transmission up to 90 meters, ensuring stable and reliable performance for professional and residential environments.

250MHz bandwidth supports Gigabit Ethernet and smooth data transmission.
Solid oxygen-free copper conductor ensures low signal loss and superior electrical performance.

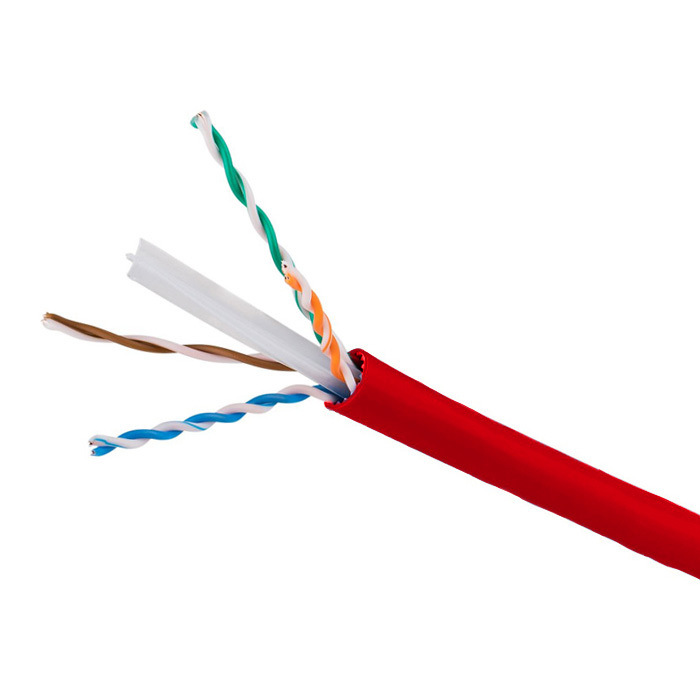

UTP structure with central PE cross effectively separates four twisted pairs, reducing crosstalk.
PVC / PE jacket for safety and installation flexibility. LSZH jacket ensures low-smoke and halogen-free safety for indoor installations.
Easy installation with built-in ripcord for fast cable termination.
Durable construction designed for long-term network stability.
Supports industrial, commercial, and home network setups.
Ideal for LAN, office networking, and security surveillance applications.

Technical Parameters

Electrical Properties

Conductor Resistance at 20°C	UL 444 & CSA C22.2 No. 214	≤ 9.5 Ω / 100m
Resistance unbalance within a pair		≤ 2%
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min		No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V		>1500 MΩ / 100m
Mutual capacitance		5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz		≤ 160 pF / 100m
Characteristic impedance at 100MHz		100 ± 15 Ω
Spark Test		2000 ± 250VOC

Transmission Properties

No.	Frequency	Attenuation (Max)	Propagation Delay (MAX)	Propagation Delay Skew (MAX)	Return Loss (Min)	NEXT (Min)	PS NEXT (Min)	EL-FEXT (Min)	PS EL-FEXT (Min)
	MHz	dB/100m	ns/100m	ns/100m	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)
1	4	3.78	552	45	23.01	66.27	63.27	55.96	52.96
2	8	5.32	546.73	45	24.52	61.75	58.75	49.94	46.94
3	10	5.95	545.38	45	25	60.3	57.3	48	45
4	16	7.55	543	45	25	57.24	54.24	43.92	40.92
5	20	8.47	542.05	45	25	55.78	52.78	41.98	38.98
6	25	9.51	541.2	45	24.32	54.33	51.33	40.04	37.04
7	31.25	10.67	540.44	45	23.64	52.88	49.88	38.1	35.1
8	50	13.66	539.09	45	22.21	49.82	46.82	34.02	31.02
9	62.5	15.38	538.55	45	21.54	48.36	45.36	32.08	29.08
10	100	19.8	537.6	45	20.11	45.3	42.3	28	25
11	125	22.36	537.22	45	19.43	43.85	40.85	26.06	23.06
12	200	28.98	536.55	45	18	40.78	37.78	21.98	18.98
13	250	32.85	536.28	45	17.32	40.35	36.33	20.04	17.04

Remarks: ＊ are the reference values

Applications

Indoor LAN and Office Networking - Ideal for structured cabling in offices, residential buildings, and commercial spaces.
Industrial Communication Systems - Supports stable data transmission in manufacturing and factory networks.
Security and Surveillance - Perfect for IP cameras, DVR/NVR systems, and security monitoring setups.
Home and Commercial Networks - Enables smooth streaming, gaming, and multi-device connectivity.
Data Centers and IT Rooms - Reliable for server connections and internal rack wiring.
