| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

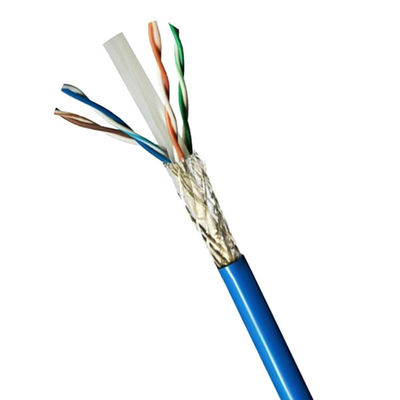

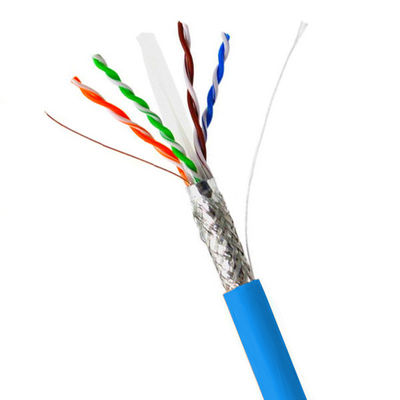

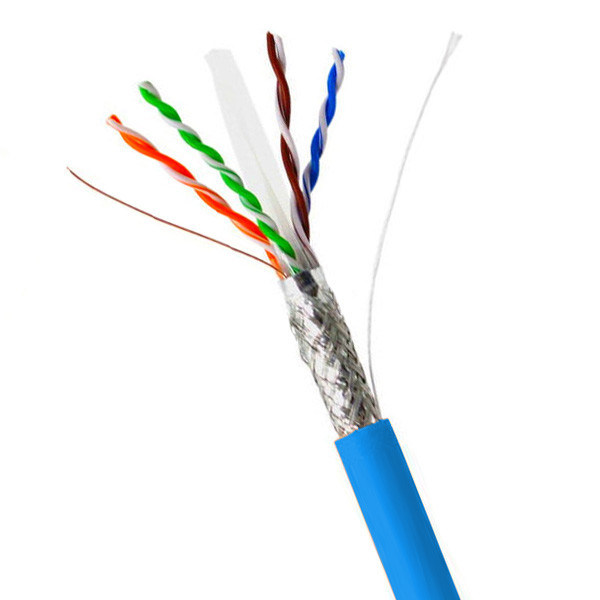

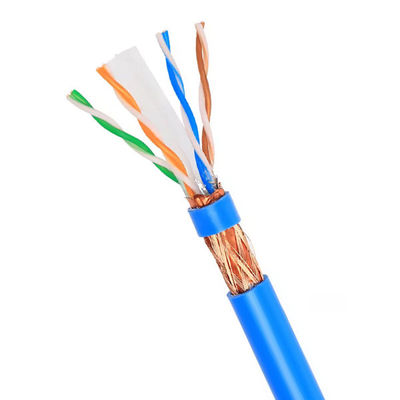

Our 305-meter Cat6 SFTP cable with blue PVC jacket meets stringent performance standards, delivering rapid and reliable data transfer for seamless connectivity.
| Parameter | Value |
|---|---|
| Cable Type | CAT6 SFTP |
| Maximum Frequency | 250MHz |
| Shielding Type | SFTP |
| Maximum Data Rate | 10Gbps |
| Conductor Material | Bare Solid Copper |
| Jacket Material | PVC |
| Conductor Size | 23AWG |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE |
| Pair Colors | 1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes |
| Shield Construction | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket Material | PVC, 50P, -20~75℃ |
| Jacket Color | Blue |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance Unbalance | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600pF / 100m MAX |
| Characteristic Impedance | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 66.27 | 63.27 |
| 10 | 5.95 | 60.3 | 57.3 |
| 100 | 19.8 | 45.3 | 42.3 |
| 250 | 32.85 | 39.33 | 36.33 |
Brand: ITI-LINK | Model: ITI-CT6SF-002
Shenzhen, China
Yes, it supports gigabit Ethernet and is backward compatible
No, it's designed for indoor use only
Typically shipped by sea with approximately 7-day delivery
