| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF7A-007 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

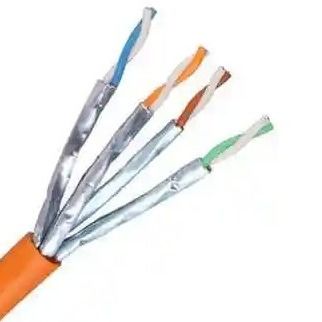

| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω / 100m |
| OD | 23AWG | Resistance unbalance within a pair ≤ 2% |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C >1500 MΩ / 100m |
| Color Coding | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Characteristic impedance at 100MHz: 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.7 | 552 | 25 | 78.0 |
| 100 | 18.5 | 538 | 20.1 | 75.4 |
| 1000 | 61.9 | 535 | 15.1 | 60.4 |
