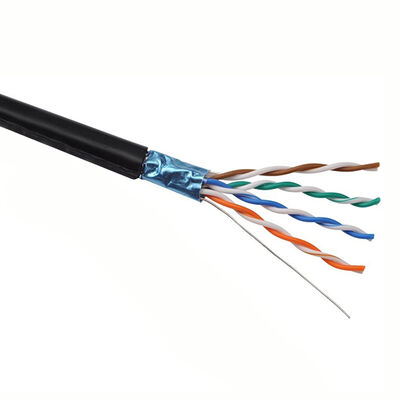

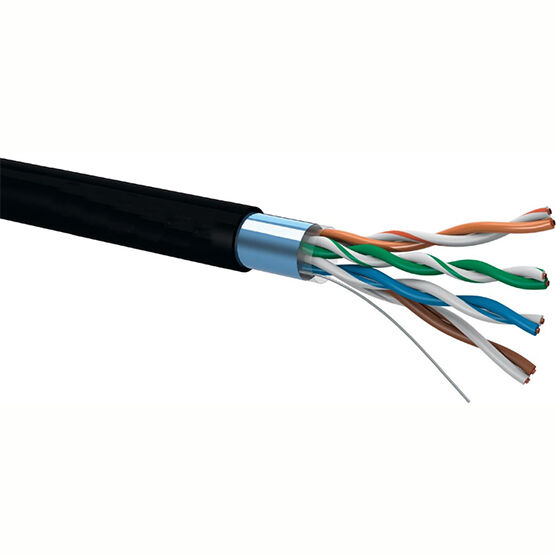

CAT5E FTP Cable Black LSZH Solid Copper 1Gbps Industrial & Data Center Ethernet Cable

Name: CAT5E FTP Cable Black LSZH Solid Copper 1Gbps Industrial & Data Center Ethernet Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5F-029
Price: 75.00 USD
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT5F-029
MOQ:	1000pcs
Price:	50$-100$
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Cable Type:

FTP

Conductor Size:

24 AWG

Certifications:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Material:

Copper

Frequency:

100MHz

Length:

1000ft

Jacket Material:

Color:

Black

Packaging Details:

Color Box+Packing Box 38*38*24cm

Highlight:

CAT5E FTP Ethernet cable LSZH

industrial Ethernet cable solid copper

data center CAT5E cable 1Gbps

Product Description

CAT5E FTP Cable Black LSZH Solid Copper 1Gbps Industrial & Data Center Ethernet Cable

Product Overview

The ITI-LINK ITI-CT5F-029 is a CAT5E FTP Shielded LAN Cable specifically developed for industrial network cable systems, data center infrastructure, and large-scale Ethernet deployments. Designed to deliver stable 1Gbps performance, this CAT5E FTP cable balances cost efficiency and interference resistance for mission-critical networking environments.

Performance & Transmission

Rated at 100MHz bandwidth, this CAT5E FTP Ethernet Cable supports reliable data transmission for IP surveillance, VoIP communication, industrial automation, and 5G network connectivity. The aluminum foil FTP shielding effectively minimizes electromagnetic interference (EMI) and crosstalk, ensuring consistent signal quality even in electrically noisy environments.

Structure & Materials

This shielded LAN cable is constructed with solid oxygen-free copper conductors and four precision-twisted pairs to reduce attenuation and improve transmission stability. The cable is wrapped with aluminum foil shielding and protected by a black LSZH low smoke zero halogen jacket. The LSZH material enhances fire safety by reducing toxic smoke emission, making it ideal for enclosed spaces such as data centers, power facilities, and commercial buildings.

Application Value

Compared with unshielded CAT5E cables, the ITI-CT5F-029 provides superior reliability for industrial network cable and data center cable installations. Its shielded design improves uptime, reduces maintenance risks, and ensures long-term network stability in demanding environments such as factories, substations, and 5G infrastructure.

Brand Trust & Quality

As part of the ITI-LINK professional networking portfolio, this CAT5E FTP cable is manufactured under strict quality control standards. Trusted by system integrators and engineering contractors worldwide, ITI-LINK delivers dependable shielded LAN cable solutions for global industrial and commercial networks.

Technical Specifications

Construction & Electrical Properties

Construction Item	Description	Electrical Property	Value
Conductor	Material	Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C: ≤ 9.5 Ω/100m
Conductor	OD	24 AWG	Resistance unbalance within a pair: ≤ 2%
Insulation	Material	HDPE 8303	Insulation Resistance at 20°C: >1500 MΩ/100m
	OD	0.88 ± 0.05 mm	Mutual capacitance: 5600 pF/100m MAX
	Average THK	0.21 mm	Capacitance unbalance pair to ground: ≤ 160 pF/100m
Color	1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown		Characteristic impedance at 100MHz: 100 ± 15 Ω

Mechanical Properties

Component	Property	Value
Insulation	Elongation before aging	≥ 300%
Insulation	Tensile strength before aging	≥ 16 MPa
Jacket	Elongation before aging	≥ 350%
	Tensile strength before aging	≥ 9.7 MPa
	Elongation after aging	≥ 263%
	Tensile strength after aging	≥ 7.3 MPa

Applications

Industrial Networks: CAT5E FTP industrial network cable for factories, automation systems, and production lines where EMI interference is common.
Data Centers: Shielded LAN cable for switches, servers, and structured cabling systems, ensuring stable 1Gbps transmission in high-density environments.
5G Communication Infrastructure: Suitable for 5G base stations, control rooms, and network backhaul systems requiring reliable Ethernet connectivity.
Power & Energy Facilities: Used in substations, monitoring rooms, and energy management systems where electrical noise resistance is critical.
Commercial & Enterprise Buildings: Supports IP cameras, access control, VoIP phones, and enterprise LAN networks in offices, malls, and business parks.
Engineering & Construction Projects: Ideal for large-scale cabling projects requiring CAT5E FTP shielded LAN cables with LSZH safety compliance.
