| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5U-029 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

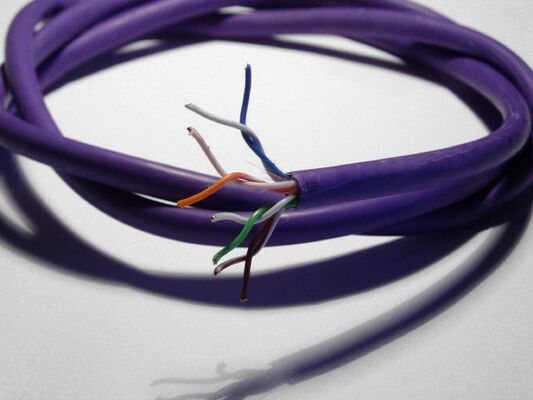

The ITI-LINK ITI-CT5U-029 CAT5E UTP Cable is a professional industrial network cable designed for stable Ethernet connectivity in modern networks. Built with solid oxygen-free copper conductors and a PVC + LSZH low-smoke jacket, this CAT5E UTP Cable supports 100MHz bandwidth and 10/100/1000Mbps Gigabit Ethernet transmission. The purple cable jacket simplifies cable identification in structured cabling systems, making it ideal for industrial networks, enterprise LAN infrastructure, surveillance systems, and communication networks.
The ITI-LINK ITI-CT5U-029 CAT5E UTP Cable is a reliable industrial network cable designed for structured Ethernet installations. Supporting 100MHz bandwidth and 10/100/1000Mbps Gigabit Ethernet, this CAT5E cable delivers stable connectivity for enterprise LAN systems, industrial automation networks, and communication infrastructure.

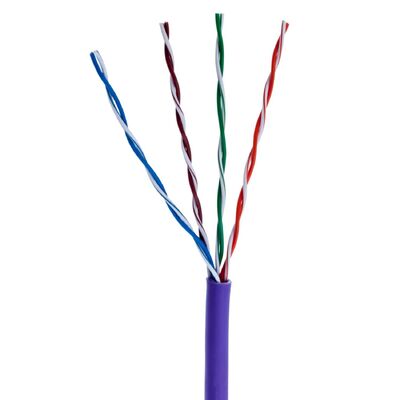

This CAT5E UTP Ethernet Cable uses solid copper conductors to ensure efficient signal transmission and reduced attenuation. The four twisted pair structure minimizes crosstalk and improves network stability, enabling consistent Gigabit Ethernet performance across industrial network environments.

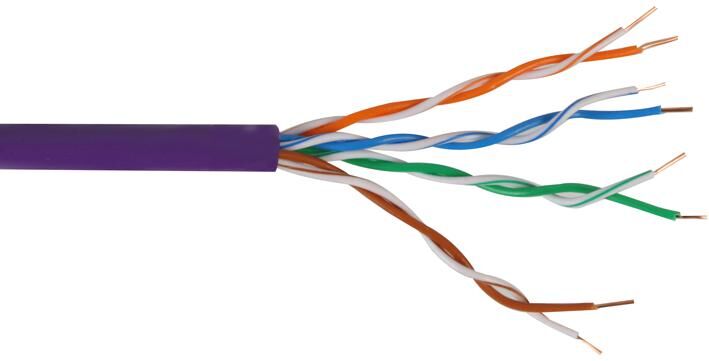

The cable features 24AWG solid oxygen-free copper conductors, a twisted pair design, and a protective PVC + LSZH jacket. The LSZH low-smoke material enhances safety by reducing toxic emissions during fire exposure, while the PVC layer improves durability and mechanical protection.
As a cost-effective CAT5E industrial network cable, the ITI-CT5U-029 is widely used in enterprise networks, industrial communication systems, surveillance infrastructure, and structured cabling deployments. The purple cable jacket also simplifies cable identification in complex network installations.
Manufactured under strict quality control standards, every ITI-LINK CAT5E UTP Cable undergoes comprehensive testing to ensure compliance with Ethernet performance requirements. This ensures long-term reliability for global industrial and commercial network deployments.
| No. | Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (MAX) ns/100m | Propagation Delay Skew (MAX) ns/100m | Return Loss (Min) dB(on 100m) | NEXT (Min) dB(on 100m) | PS NEXT (Min) dB(on 100m) | EL-FEXT (Min) dB(on 100m) | PS EL-FEXT (Min) dB(on 100m) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4 | 4.05 | 552 | 45 | 23.01 | 56.27 | 53.27 | 51.96 | 48.96 |
| 2 | 8 | 5.77 | 546.73 | 45 | 24.52 | 51.75 | 48.75 | 45.94 | 42.94 |
| 3 | 10 | 6.47 | 545.38 | 45 | 25 | 50.3 | 47.3 | 44 | 41 |
| 4 | 16 | 8.25 | 543 | 45 | 25 | 47.24 | 44.24 | 39.92 | 36.92 |
| 5 | 20 | 9.27 | 542.05 | 45 | 25 | 45.78 | 42.78 | 37.98 | 34.98 |
| 6 | 25 | 10.42 | 541.2 | 45 | 24.32 | 44.33 | 41.33 | 36.04 | 33.04 |
| 7 | 31.25 | 11.72 | 540.44 | 45 | 23.64 | 42.88 | 39.88 | 34.1 | 31.1 |
| 8 | 50 | 15.07 | 539.09 | 45 | 22.21 | 39.82 | 36.82 | 30.02 | 27.02 |
| 9 | 62.5 | 16.99 | 538.55 | 45 | 21.54 | 38.36 | 35.36 | 28.08 | 25.08 |
| 10 | 100 | 21.98 | 537.6 | 45 | 20.11 | 35.3 | 32.3 | 24 | 21 |
* Reference values
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
| Dielectric Strength | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
