| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

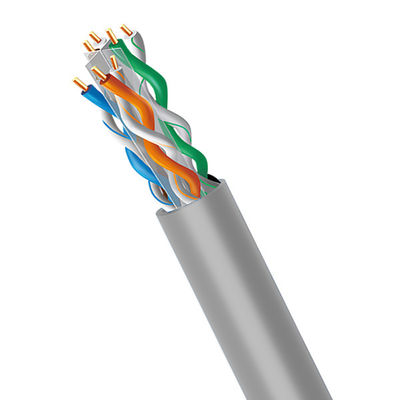

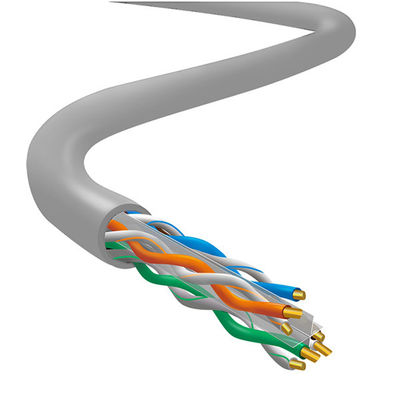

High-performance CAT6 UTP PoE Ethernet cable designed for modern network applications, combining high-speed data transmission with convenient power supply. Complies with ANSI/TIA-568-B.2 & ISO/EC11801 standards.
| Construction | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Jacket Material | PVC, 50P, -20~75℃ |
| Cable Diameter | 6.0 ± 0.15 mm |
| Characteristic Impedance | 100 ±15 Ω at 100MHz |
| Property | Standard | Value |
|---|---|---|
| Mutual Capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Dielectric Strength | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown at 1.00KV DC or 0.7 KV AC for 1 min |
| Insulation Resistance | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 66.27 | 63.27 |
| 100 | 19.8 | 45.3 | 42.3 |
| 250 | 32.85 | 39.33 | 36.33 |
