| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

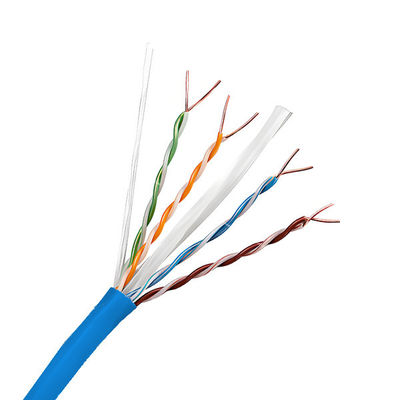

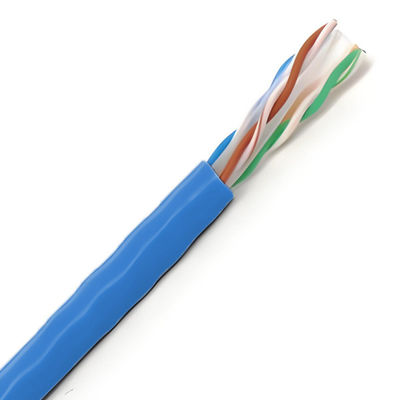

LSZH Cat 6 Ethernet cables are essential components of modern network communication infrastructure, combining environmental compliance with superior data transmission performance. The low smoke and halogen-free materials prevent toxic gas emissions during combustion, ensuring personnel safety and environmental protection.
With Cat6 specifications supporting bandwidth up to 250MHz (expandable to 550MHz under specific conditions) and 1Gbps Ethernet speeds, these cables meet demanding network applications including HD video streaming, large file transfers, and high-speed internet access. The design features excellent interference resistance and low attenuation characteristics for stable, clear signal transmission.
Ideal for enterprise networks, data centers, and smart home systems, these cables provide reliable, high-quality solutions for efficient and green network environments.
| Product Description: Cat 6 UTP 4 X 2 X 23AWG LSZH | |
|---|---|
| Construction | Electrical Properties |
| Conductor: Bare Solid Copper (23 AWG) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| Insulation: HDPE 8303 (1.01 ± 0.01 mm) | Insulation Resistance: >1500 MΩ / 100m |
| Jacket: LSZH, 60P (-20~75℃) | Characteristic Impedance: 100 ±15 Ω |
| Color Coding: Standard T568B/T568A | Dielectric Strength: 1.00KV DC / 0.7 KV AC |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 23.01 | 66.27 |
| 100 | 19.8 | 20.11 | 45.3 |
| 250 | 32.85 | 17.32 | 39.33 |
These LSZH Category 6 cables are ideal for:
