| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-003 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

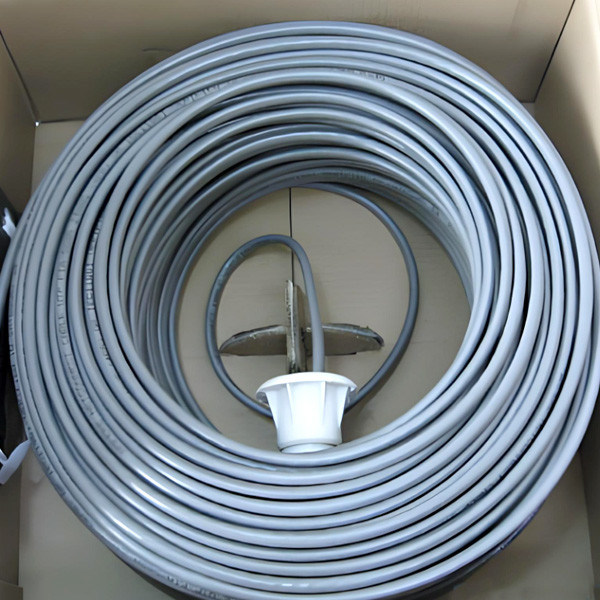

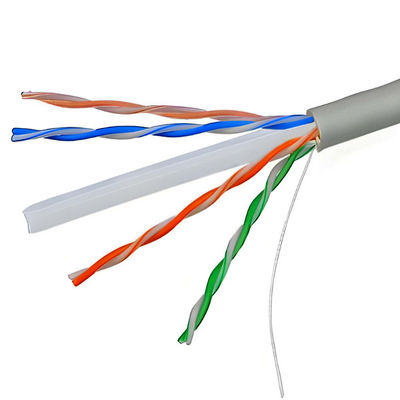

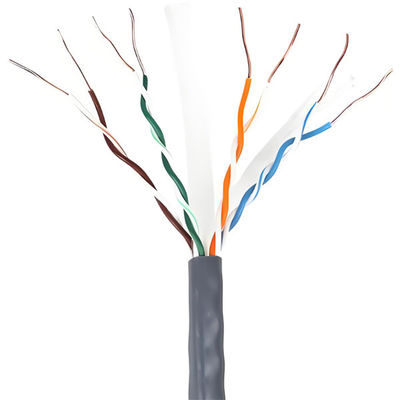

This Cat6 CMX-rated cable provides 250MHz bandwidth within 90 meters, supporting typical application rates of 1000Mbps. Designed for general-purpose indoor wiring with flame retardant properties, it features:
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| Conductor Size | 23 AWG | Resistance unbalance within a pair: ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance: >1500 MΩ / 100m |
| Jacket Material | PVC, Rated 60 or 75℃ | Mutual capacitance: 5600 pF / 100m MAX |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | NEXT (Min dB on 100m) |
|---|---|---|---|
| 4 | 3.78 | 552 | 66.27 |
| 8 | 5.32 | 546.73 | 61.75 |
| 250 | 32.85 | 536.28 | 39.33 |
Ideal for secure, stable data transmission in:
