| Brand Name: | ITI-LINK |
| Model Number: | ITI-Ct6u-005 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

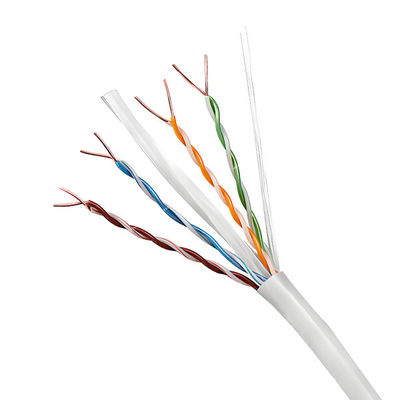

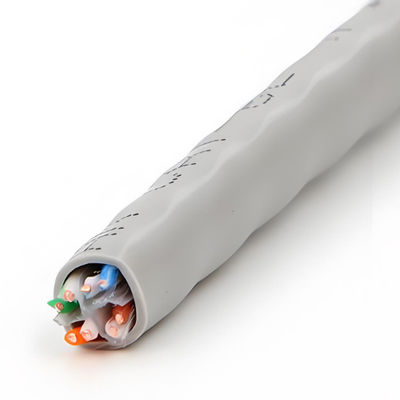

| Construction | Electrical Properties | ||
|---|---|---|---|
| Conductor Material | Bare Solid Copper | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Conductor Size | 23 AWG | Resistance Unbalance | ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | PVC, Rated 60 or 75℃ | Mutual Capacitance | 5600 pF / 100m MAX |
| Overall Diameter | 6.0 ± 0.2 mm | Characteristic Impedance | 100 ±15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 66.27 | 23.01 |
| 10 | 5.95 | 60.3 | 25 |
| 100 | 19.8 | 45.3 | 20.11 |
| 250 | 32.85 | 39.33 | 17.32 |
