| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
CAT6 UTP CABLE 23AWG Extend to 550MHz CMP PVC High Speed Lan Cable 1000FT
Cat6 UTP Cable provides 250MHz bandwidth within a distance of 90 meters with a typical application rate of 1000Mbps. The bandwidth of this Cat6 cable can reach 550MHz, supporting high-speed data transmission for demanding network applications.

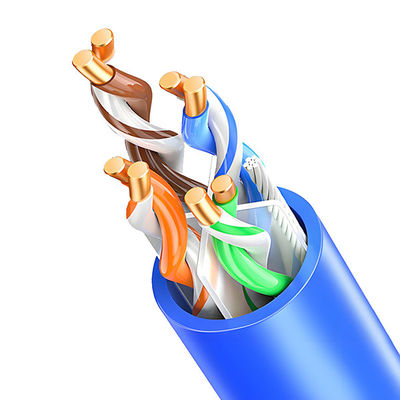

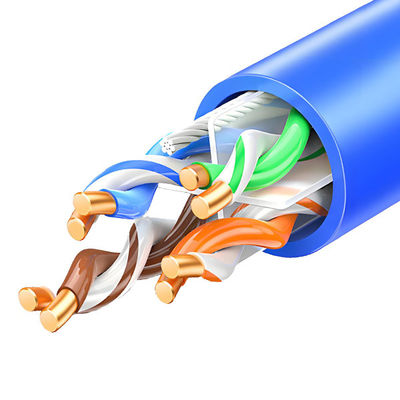

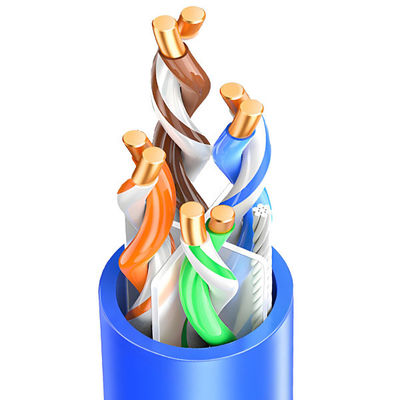

The cable features high-quality oxygen-free copper conductors and a central cross-shaped PE skeleton design that separates the four individual pairs, ensuring reliable electrical transmission performance that exceeds Category 6 system indicators.
CMP cables feature special materials and structural designs with exceptional flame retardant performance.
| Product Description: CAT6 UTP Cable 4 X 2 X 23AWG (CMP) | |
|---|---|
| Construction Item | Description |
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor OD | 23AWG |
| Insulation Material | FEP DAIKIN NP-101 E79842 |
| Insulation OD | 1.01 ± 0.01 mm |
| Pair Colors | 1p: white + blue stripes, 2p: white + orange stripes, 3p: white + green stripes, 4p: white + brown stripes |
| Jacket Material | PVC, MSC 1080 NAT E107947 |
| Jacket OD | 6.0 ± 0.2 mm |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ±15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 552 | 45 |
| 100 | 19.8 | 537.6 | 20.11 |
| 250 | 32.85 | 536.28 | 17.32 |
| 550 | 34.12 | 539.09 | 19.43 |
