| Brand Name: | ITI-LINK |
| Model Number: | ITI-CABLE-007 |
| MOQ: | 1000pcs |
| Price: | $50-100/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

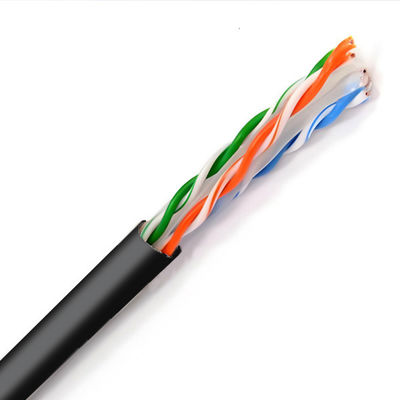

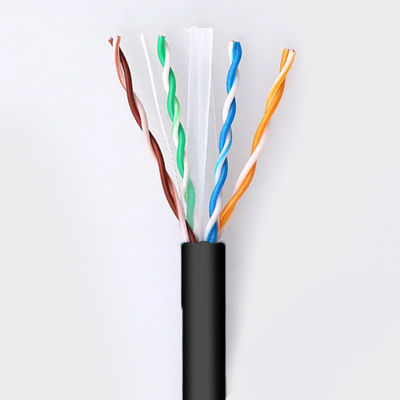

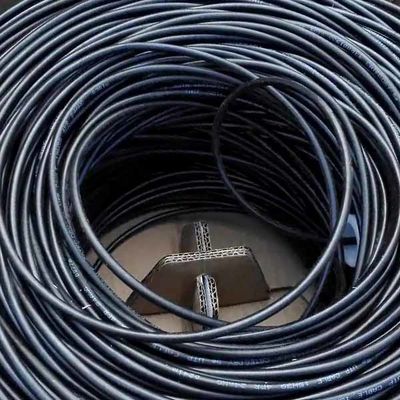

| Product Description: CAT6 UTP 4 X 2 X 23AWG Solid Outdoor PE Cable | |
|---|---|
| Construction Item | Description |
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Characteristic Impedance at 100MHz | 100 ±15 Ω |
| Jacket Material | LDPE |
| Jacket Hardness | 81 ±3 |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 1 | 3.78 | 552 | 45 | 66.27 |
| 100 | 19.8 | 537.6 | 20.11 | 45.3 |
| 250 | 32.85 | 536.28 | 17.32 | 39.33 |
