| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6OUT-004 |
| MOQ: | 1000pcs |
| Price: | $50-100/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

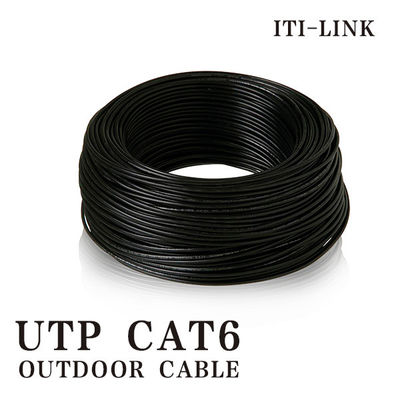

1000FT Cat6 UTP 23AWG Extend To 550MHz Solid Outdoor PE Filling Glue High Speed Network Lan Cable
Cat 6 OUTDOOR CABLE provides 250MHz bandwidth within 90 meters, extendable to 550MHz. Typical application rate is 1Gbps.
The cable features internal glue filling that enhances waterproof performance and stabilizes the internal structure, making it ideal for outdoor environments.
These Cat6 UTP cables are widely used in computer networks, telephone systems, and security monitoring, supporting transmission rates from 100Mbps to 1000Mbps Ethernet.
Designed for outdoor use with excellent weather resistance, waterproofing, and UV protection for long-term performance in harsh conditions.

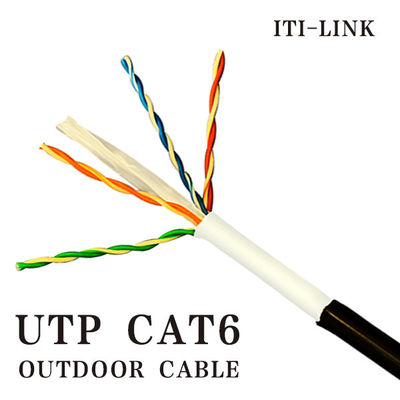

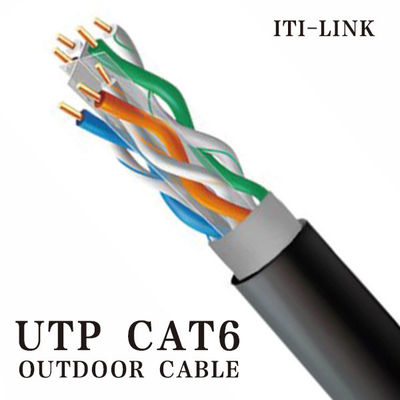

Constructed with high-quality oxygen-free copper conductors and a central cross-shaped PE skeleton that separates wire pairs, ensuring reliable electrical transmission that exceeds Category 6 standards.
| Component | Description |
|---|---|
| Inner Conductor | Material: Solid Bare Copper (BC) Diameter: See specifications table |
| Insulation | Material: High density Polyethylene (HDPE) Diameter: See specifications table |
| Filler | Type: Cross-Member Material: High density Polyethylene (HDPE) |
| Filler | Type: Ripcord Material: Polyester |
| Jacket | Material: LDPE Dimensions: See specifications table Color: Customizable |
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor | Material: Bare Solid Copper OD: 23 AWG |
Conductor Resistance at 20°C: ≤ 9.5 Ω/100m Resistance unbalance within a pair: ≤ 2% |
| Insulation | Material: HDPE 8303 OD: 0.95 ± 0.01 mm Color: Color-coded pairs |
Insulation Resistance: >1500 MΩ/100m Mutual capacitance: 5600 pF/100m MAX |
| Pair Twist | Lay & Direction: Varies by pair (18.5mm to 20.5mm) | Characteristic impedance at 100MHz: 100 ±15 Ω |
| Jacket | Material: LDPE OD: 6.1 ± 0.2 mm |
Dielectric Strength: 1.00KV DC or 0.7 KV AC for 1 min |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.78 | 552 | 23.01 | 66.27 |
| 100 | 19.8 | 537.6 | 20.11 | 45.3 |
| 250 | 32.85 | 536.28 | 17.32 | 39.33 |
Ideal for office buildings, schools, research facilities, airports, hospitals, hotels, industrial sites, shopping centers, and other commercial environments requiring reliable high-speed networking.
