| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6OUT-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |

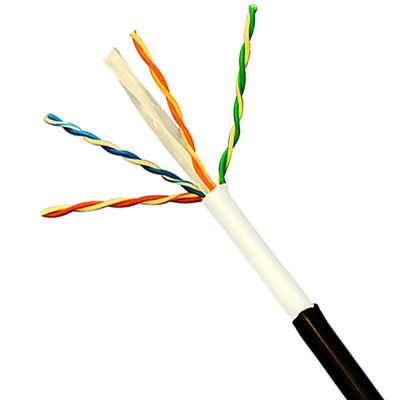

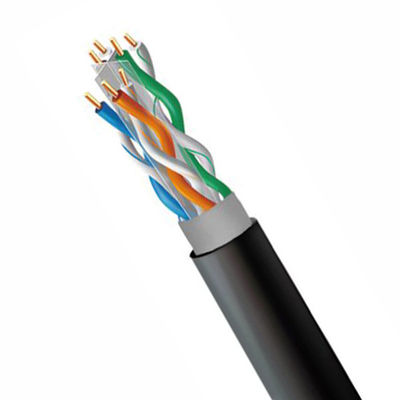

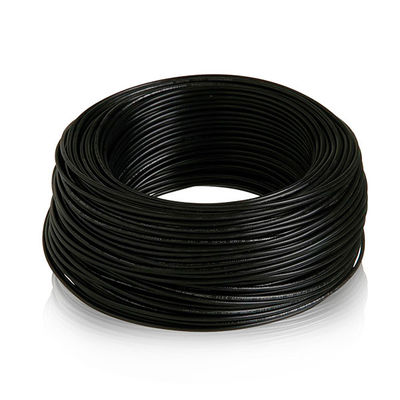

High-performance Cat6 UTP outdoor network cable featuring solid pure copper conductors and durable PVC+PE double-layer outer jacket for superior weather resistance and long-term reliability in outdoor installations.
| Inner Conductor | Bare solid copper (23AWG) |
| Insulation | HDPE 8303 (1.14 ± 0.05 mm OD) |
| Cross Member | Central cross-shaped PE skeleton |
| Outer Jacket | PVC+PE double-layer (5.8/7.2 mm OD) |
| Color Coding | Blue/white+blue, orange/white+orange, green/white+green, brown/white+brown pairs |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Resistance | >1500 MΩ / 100m |
| Characteristic Impedance at 100MHz | 100 ± 15 Ω |
| Mutual Capacitance | 5600 pF / 100m MAX |
Provides 250MHz bandwidth within 90 meters distance with typical application rate of 1000Mbps. Features excellent weather resistance, waterproof performance, and UV resistance for long-term outdoor use.
Ideal for outdoor network installations in office buildings, schools, research facilities, airports, hospitals, hotels, industrial complexes, shopping centers, and other commercial environments.
A: Yes, we welcome sample orders to test and check quality.
A: 3-5 days for sample preparation, 8-10 working days for mass production.
A: Low MOQ, 1pc for sample checking is available.
A: Typically by sea (about 7 days arrival time).
A: Yes, we offer 10-year warranty on our products.
