| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6UCM-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| OD: 23 AWG | Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m |
| OD: 1.01 ± 0.01 mm | Mutual capacitance: 5600 pF / 100m MAX |
| Average THK: 0.22 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m |

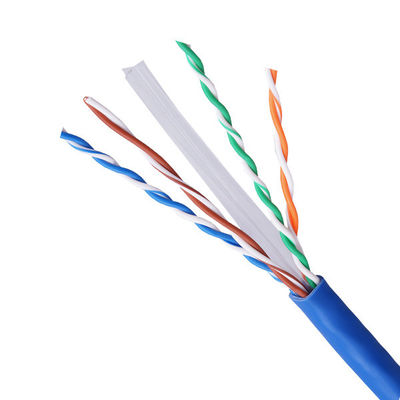

| Color: 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Characteristic impedance at 100MHz: 100 ±15 Ω |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
| Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m |
| No. | Frequency (MHz) | Attenuation (Max) (dB/100m) | Propagation Delay (MAX) (ns/100m) | Return Loss (Min) (dB) |
|---|---|---|---|---|
| 1 | 4 | 3.68 | 551 | 22.91 |
| 2 | 8 | 5.35 | 545.73 | 23.92 |
| 3 | 10 | 5.85 | 546.18 | 24 |
