| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

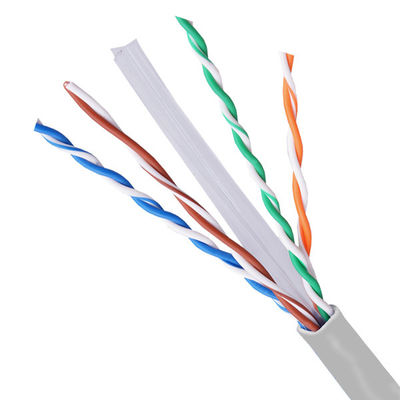

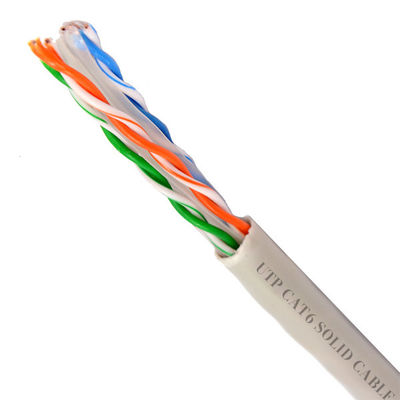

High-performance Cat6 UTP network cable featuring solid bare copper conductors with 250MHz bandwidth and 1Gbps data transmission rate. Ideal for various networking applications with superior transmission performance.
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| Conductor Size | 23 AWG | Resistance unbalance within a pair: ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance: >1500 MΩ / 100m |
| Jacket Material | PVC, Rated 60 or 75℃ | Mutual capacitance: 5600 pF / 100m MAX |
| Pair Colors | 1p: white+blue/blue, 2p: white+orange/orange, 3p: white+green/green, 4p: white+brown/brown | Characteristic impedance at 100MHz: 100 ±15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.58 | 546 | 22.67 | 66.28 |
| 10 | 5.85 | 545.34 | 24 | 61.0 |
| 100 | 19.2 | 536.9 | 20.61 | 46.1 |
| 250 | 31.95 | 536.23 | 17.65 | 39.26 |
Widely used in office buildings, schools, research institutions, airports, high-speed trains, hospitals, hotels, industries, shopping malls, supermarkets, and other networking environments requiring high-speed data transmission.
