| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-0016 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Product Attribute | Value |
|---|---|

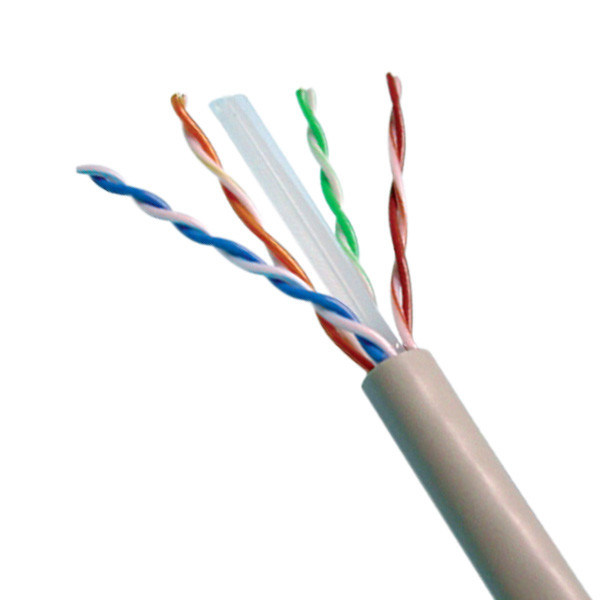

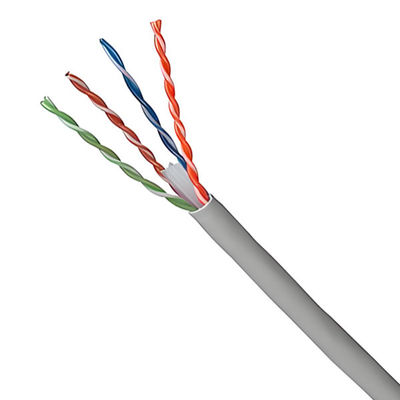

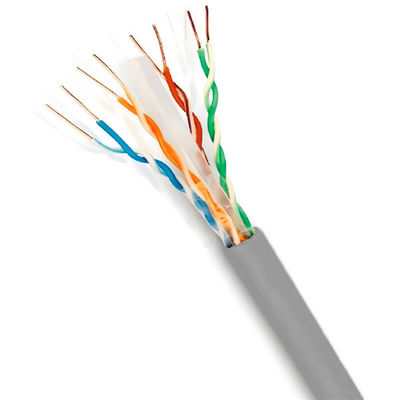

| Cable Type | CAT6 Network Cable |
| Transmission Speed | 1Gbps |
| Bandwidth | 250MHz |
| Color | Grey |
| Conductor Size | 23AWG |
| Jacket Material | PVC |
| Length | 1000ft |
| Certifications | UL, ETL, RCM, CPR, CSA |
| Compatibility | Ethernet |
| Category | CAT6 LAN Cable |
| Shielding | Unshielded |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Characteristic Impedance at 100MHz | 100 ±15 Ω |
| Jacket Material | PVC, 50P, -20~75℃ |
| Jacket OD | 6.0 ± 0.15mm |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 23.01 | 66.27 |
| 10 | 5.95 | 25 | 60.3 |
| 100 | 19.8 | 20.11 | 45.3 |
| 250 | 32.85 | 17.32 | 39.33 |
