| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-0011 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

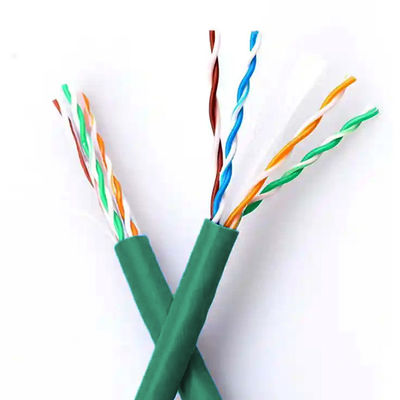

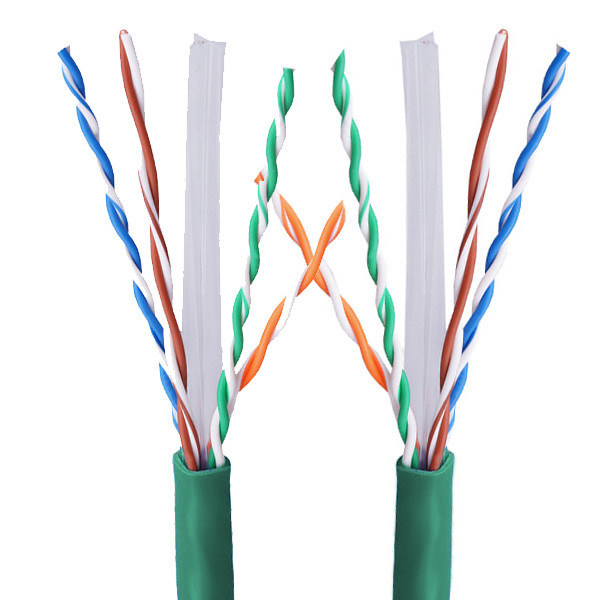

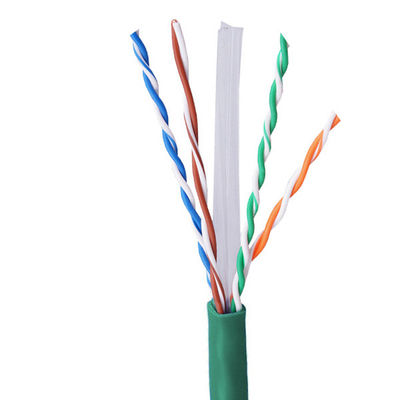

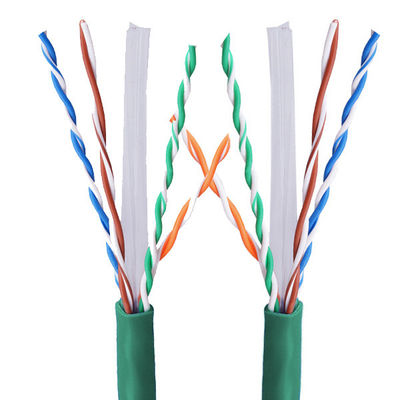

The UTP CAT6 Ethernet Cable features a durable green PVC jacket for easy identification and protection against environmental factors. This high-performance cable delivers reliable network connectivity with data transfer speeds up to 1Gbps, making it ideal for demanding applications.
| Construction | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (23AWG) |
| Insulation Material | HDPE 8303 |
| Jacket Material | PVC, 50P |
| Color Coding | Standard T568B color pairs with distinctive stripes |
| Outer Diameter | 6.0 ± 0.15 mm |
| Parameter | Value |
|---|---|
| Conductor Resistance | ≤ 9.5 Ω / 100m |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Characteristic Impedance | 100 ±15 Ω |
| Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) |
|---|---|---|
| 100 | 19.8 | 45.3 |
| 250 | 32.85 | 39.33 |
