| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-0013 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

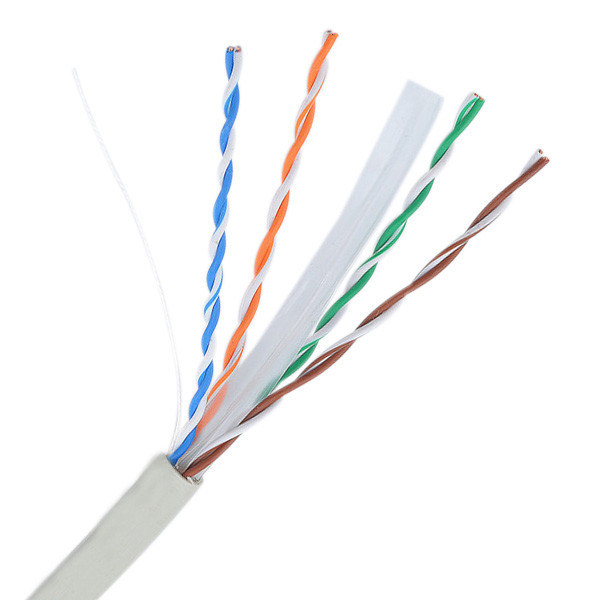

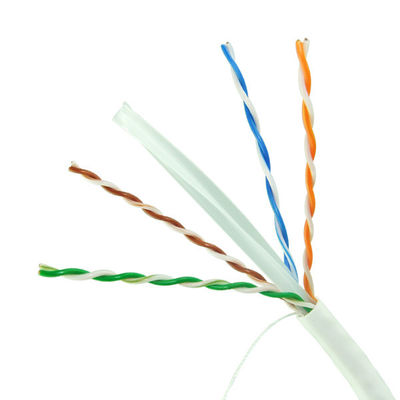

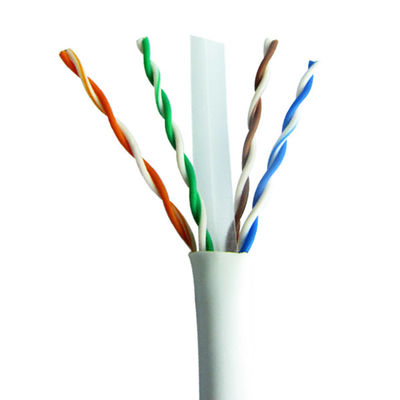

This high-performance CAT6 UTP cable features 23AWG solid copper conductors and PVC plenum-rated jacket, delivering reliable 1Gbps Ethernet connectivity for demanding network environments.
| Parameter | Specification |
|---|---|
| Length | 500ft |
| Category | CAT6 UTP |
| Conductor Size | 23AWG solid bare copper |
| Bandwidth | 250MHz |
| Jacket Material | PVC Plenum (CMP) |
| Color | White |
| Transmission Speed | 1Gbps |
| Certifications | UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Pair Identification | Color-coded with stripes (white/blue, white/orange, white/green, white/brown) |
| Jacket Material | PVC, 50P (-20°C to 75°C operating range) |
| Jacket Thickness | 0.55-0.60mm |
| Overall Diameter | 6.0 ± 0.15mm |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 100 | 19.8 | 45.3 | 42.3 |
| 250 | 32.85 | 39.33 | 36.33 |
