| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6U-0018 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Product Attribute | Value |
|---|---|

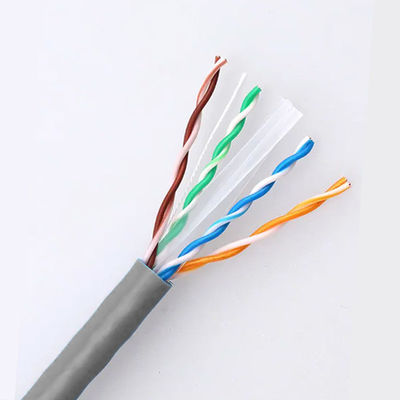

| Cable Type | CAT6 UTP CABLE |
| Conductor Size | 23AWG |
| Shielding | Unshielded |
| Bandwidth | 250MHz |
| Transmission Speed | 1Gbps |
| Jacket Material | PVC |
| Certifications | UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS |
| Compatibility | Ethernet |
| Color | Grey |

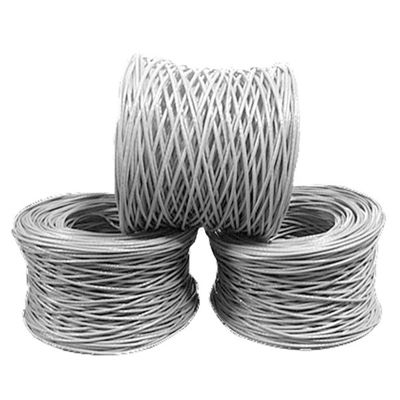

| Length | 500ft |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |

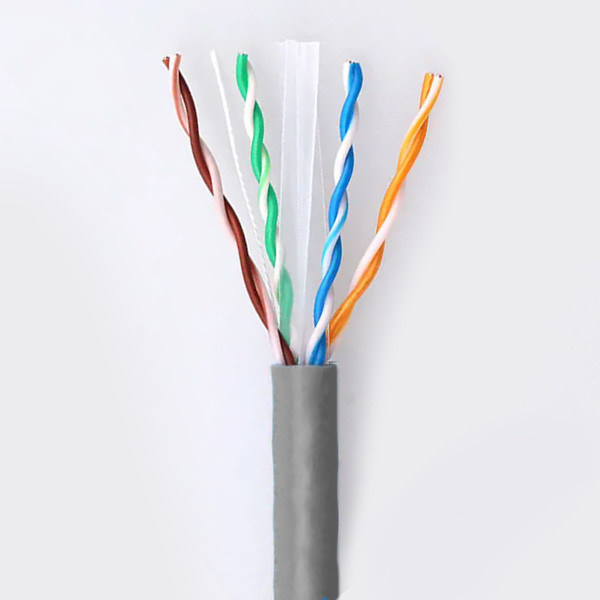

| Pair Colors | 1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes |
| Pair Twist | Variable lay lengths (15.5mm to 22.0mm) |
| Jacket Material | Inner Jacket: PVC + Outside Jacket: PE |
| Overall Diameter | 5.8/7.2mm |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
| Dielectric Strength Test Voltage | No breakdown at 1.00KV DC or 0.7 KV AC for 1 min | |
| Insulation Resistance | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 66.27 | 63.27 |
| 10 | 5.95 | 60.3 | 57.3 |
| 16 | 7.55 | 57.24 | 54.24 |
| 20 | 8.47 | 55.78 | 52.78 |
| 100 | 19.8 | 45.3 | 42.3 |
| 250 | 32.85 | 39.33 | 36.33 |
