Industrial CAT6 UTP Cable LSZH Solid Copper 250MHz 10Gbps Network Cable

Name: Industrial CAT6 UTP Cable LSZH Solid Copper 250MHz 10Gbps Network Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6U-029
Price: 75.00 USD
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT6U-029
MOQ:	1000pcs
Price:	50$-100$
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Category:

CAT6

Shielding:

Unshielded

Bandwidth:

250MHz

Compatibility:

Ethernet

Length:

1000ft

Color:

Orange

Certifications:

UL, CSA, ETL, CPR, TUV, RCM, CE, RoHS

Application:

Data Center Cable / Industrial Network Cable

Packaging Details:

26x26x12CM

Highlight:

Industrial CAT6 UTP cable LSZH

Solid copper network cable 10Gbps

CAT6 UTP cable 250MHz

Product Description

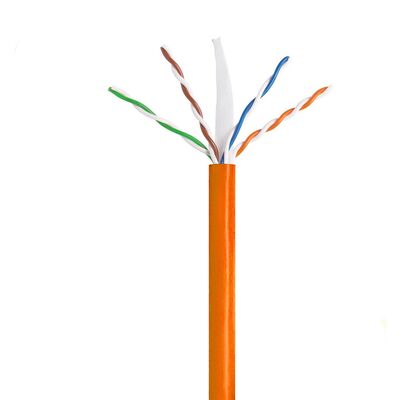

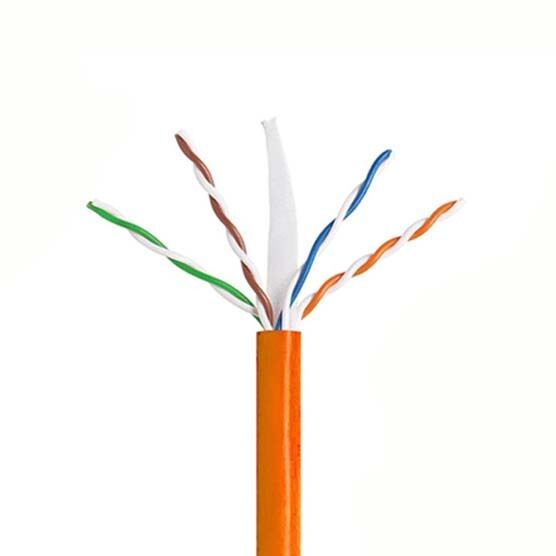

Industrial CAT6 UTP Cable LSZH Solid Copper 250MHz 10Gbps Network Cable

CAT6 UTP Ethernet Cable delivers reliable 10Gbps performance for enterprise LANs, data centers, and industrial network systems. Built with solid copper conductors and a low-smoke zero-halogen LSZH jacket, it provides enhanced safety, durability, and long-term stability. Compared with shielded LAN cable, this unshielded CAT6 cable offers easier installation and lower overall project cost.

Product Overview

The ITI-LINK ITI-CT6U-029 is a professional-grade CAT6 UTP Cable engineered for industrial environments, data centers, and 5G network infrastructure. Designed for large-scale and long-term deployments, this CAT6 Ethernet Cable delivers stable 10Gbps transmission while maintaining cost efficiency for enterprise and industrial projects.

Network Performance & Stability

Supporting up to 250MHz bandwidth, this CAT6 UTP Cable ensures reliable high-speed data transmission for demanding applications such as industrial automation, 5G backhaul, and enterprise LAN systems. The 23AWG solid oxygen-free copper conductors significantly reduce attenuation and signal loss, providing consistent performance across extended cable runs.

Structure & Safety Materials

Featuring an unshielded twisted pair (UTP) structure, this cable offers easier installation and improved flexibility compared with shielded LAN cable solutions, especially in non-EMI-intensive environments. The LSZH low-smoke zero-halogen jacket minimizes toxic smoke and corrosive gas emissions in case of fire, making it suitable for enclosed spaces and public infrastructure.

Engineering & Deployment Value

As a dependable industrial network cable and data center cable, the ITI-CT6U-029 supports high-density cabling layouts, organized routing, and efficient maintenance. Its orange jacket improves visibility in complex installations, reducing troubleshooting time and improving operational efficiency.

Brand Reliability

Backed by ITI-LINK's manufacturing expertise and international certifications, this CAT6 UTP LSZH Cable is trusted by system integrators, industrial engineers, and network contractors worldwide for mission-critical network deployments.

Technical Parameters

Construction & Electrical Properties

Construction Item	Description	Electrical Property	Value
Conductor	Material	Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Conductor	OD: 23 AWG	Resistance unbalance within a pair	≤ 2%
Insulation	Material: HDPE 8303	Insulation Resistance at 20°C	>1500 MΩ / 100m
	OD: 1.14 ± 0.05 mm	Mutual capacitance	5600 pF / 100m MAX
	Average THK: 0.29 mm	Capacitance unbalance pair to ground	≤ 160 pF / 100m
Color Coding	White with colored stripes	Characteristic impedance at 100MHz	100 ± 15 Ω

Transmission Properties - CAT6 UTP Cable

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (Max ns/100m)	Return Loss (Min dB)	NEXT (Min dB)	PS NEXT (Min dB)
4	3.78	552	23.01	66.27	63.27
10	5.95	545.38	25	60.3	57.3
25	9.51	541.2	24.32	54.33	51.33
100	19.8	537.6	20.11	45.3	42.3
250	32.85	536.28	17.32	39.33	36.33

Applications

Industrial Network Systems - Ideal for factories, manufacturing plants, automation systems, and control panels requiring stable CAT6 UTP connectivity.
5G Communication Infrastructure - Widely used in 5G base stations, edge computing units, and communication cabinets for reliable high-speed data transmission.
Data Centers & Server Rooms - Functions as a cost-effective data center cable for horizontal cabling between servers, switches, and network distribution frames.
Power & Utility Facilities - Suitable for power plants, substations, and smart grid networks where LSZH safety and solid copper reliability are essential.
Commercial & Enterprise Buildings - Supports structured cabling in office buildings, business parks, and industrial campuses with high-density network demands.
Transportation & Public Infrastructure - Applied in airports, rail systems, and public facilities where low-smoke, zero-halogen cable standards are required.
